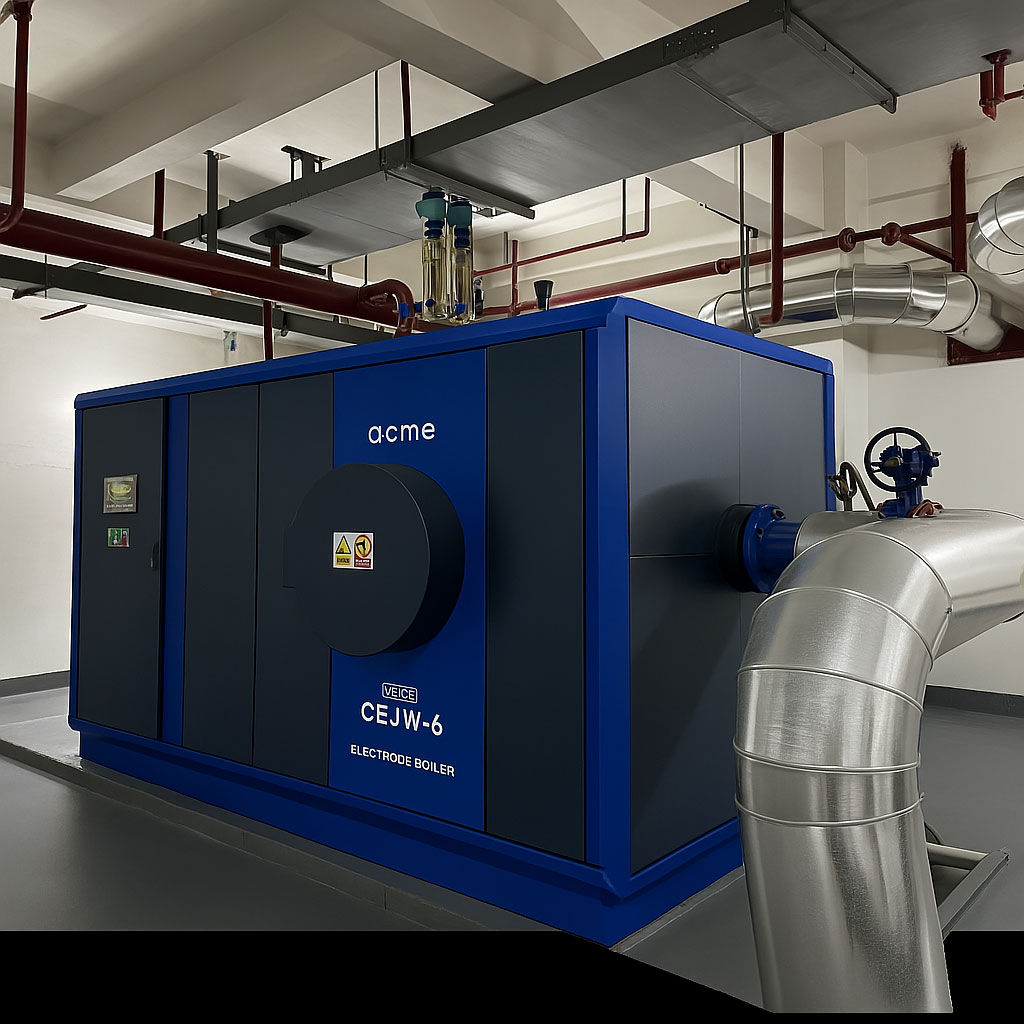

High Voltage Immersed Electrode Hot Water Boiler
A.E.P. Thermal offers hot water boilers based on proven designs for building complexes, commercial structures, and light industry. This boiler can be connected directly to the high-voltage power distribution network.
Industrial Electric Boiler Systems for High-Performance Heating
AEP Thermal’s industrial electric hot water boilers use advanced immersed electrode technology to deliver precise, efficient, and scalable heating for demanding commercial and industrial applications. Designed to deliver exceptional performance, these boilers can match the output of large gas or oil-fired units—reaching capacities of up to 60 MW—while occupying significantly less space.
What Is an Immersed Electrode Boiler?
An immersed electrode boiler generates heat by passing an electrical current directly through water. The system operates using electrodes submerged in water with controlled conductivity. When voltage is applied, the water acts as a resistive medium, producing heat almost instantly.
Unlike conventional electric resistance boilers, electrode boilers:
- Deliver near-instantaneous heat response
- Scale output automatically with demand
- Eliminate inefficiencies associated with heating elements
Advanced Electrode Boiler Design
Modern immersed electrode boilers are based on an enhanced Swiss-engineered design that improves performance and control over earlier systems.
Key design advantages:
- Full modulation (0%–100% capacity control)
- Stable operation using a circulating pump to maintain constant pressure
- Precision output control via a movable sleeve system
- Reliable water jet distribution for consistent heating performance
- Capability to operate at high voltage (up to 13.5 kV+)
- Reduced blowdown through optimized conductivity control
This improved design eliminates the instability issues found in earlier electrode boilers, ensuring consistent output across all load conditions.
Features & Standard Equipment
AEP Thermal electrode hot water boilers are delivered as fully integrated systems engineered for performance and ease of installation.
Mechanical Features:
- ASME-certified pressure vessel
- Fully assembled internal electrode system
- Insulated boiler jacket
- Integrated circulating pump(s)
- Expansion tank and heat exchange loop
Plumbing Components:
- Safety valves and blowdown system
- Automatic air vent
- Isolation valves and Y-strainers
- Integrated make-up water system
- Chemical feed connection for water treatment
Electrical System:
- High-voltage electrode terminals
- Pump motor and starter
- Grounded safety enclosure
Intelligent Controls:
- Pre-programmed control panel
- Temperature and pressure monitoring
- High-temperature and low-water safety limits
- Conductivity monitoring
- Flow and level detection systems
Benefits of Electric Electrode Boilers
Efficiency & Performance
- Near 100% energy efficiency at the point of use
- Rapid response to changing load demands
- Precise temperature and output control
Operational Advantages
- No combustion, emissions, or flue systems
- Reduced maintenance compared to gas or steam boilers
- Quiet, compact installation
Scalability
- Ideal for both small commercial systems and large industrial operations
- Easily integrates into existing hydronic systems
Industries We Serve
AEP Thermal’s industrial electric hot water boilers are suitable for a wide range of industries, including:
- Commercial buildings (offices, apartments, hotels)
- Hospitals and institutional facilities
- Food processing and manufacturing
- Textile and industrial plants
- Mining and energy operations
- District heating and power plants
Water Quality & System Optimization
Proper water treatment is essential for optimal electrode boiler performance. System efficiency depends on maintaining appropriate:
- Conductivity levels
- pH balance
- Chemical composition
AEP Thermal works with customers to ensure correct water treatment strategies, maximizing efficiency and extending equipment life.

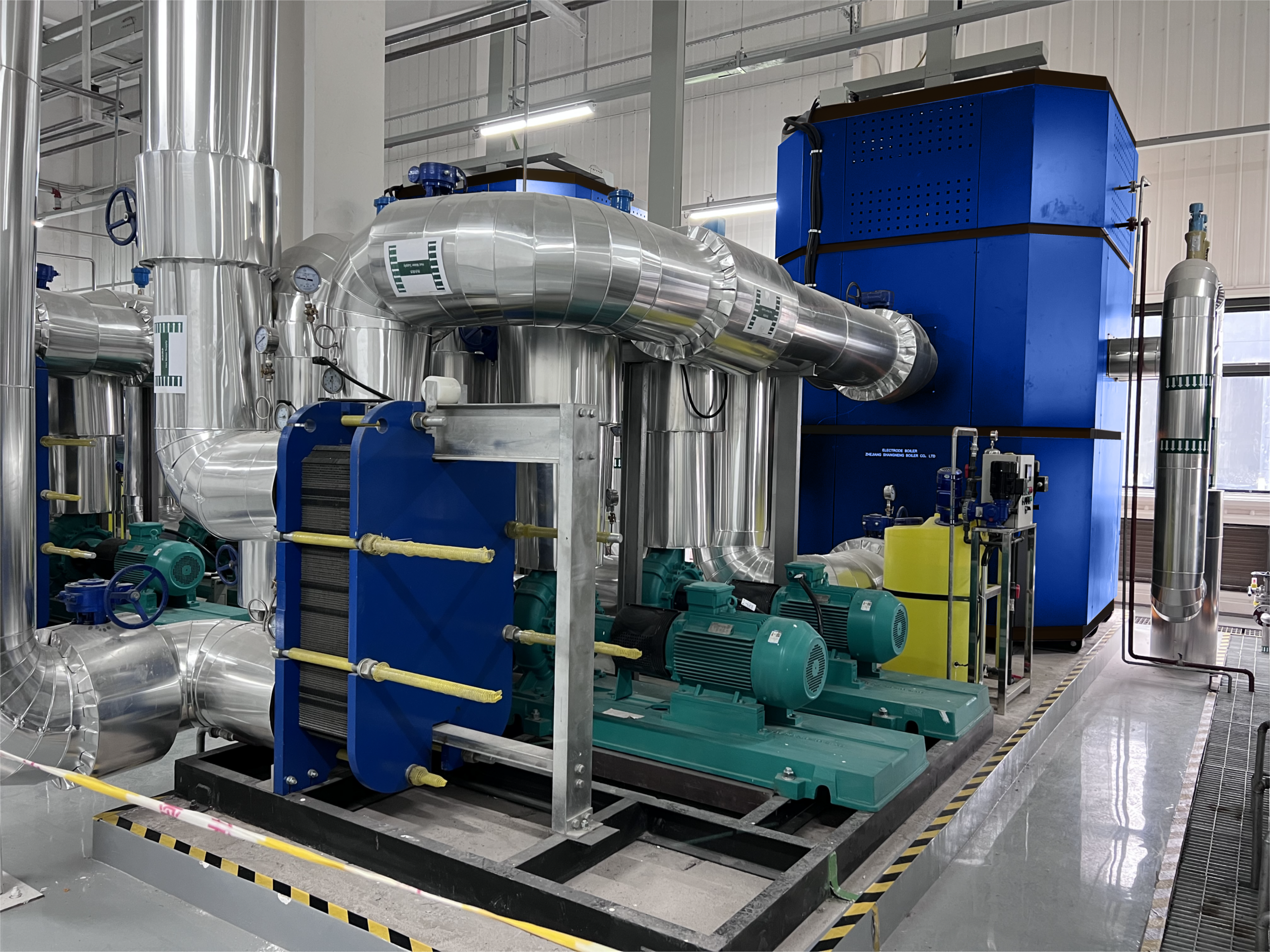

Advanced Electrode Boiler Technology
Our systems are based on an enhanced electrode design that delivers superior reliability and control:
- Full modulation from 0% to 100% output
- Stable operation with a constant-pressure circulating system
- Precision control via modulating sleeve technology
- High-voltage capability for large-scale applications
- Optimized conductivity management to reduce blowdown
This ensures consistent, dependable heating performance, even under fluctuating demand.
Complete, Turnkey Boiler Systems
Included in Every System:
- ASME-certified pressure vessel
- Integrated electrode assembly
- Circulating pumps and an expansion tank
- Safety valves and blowdown system
- Pre-programmed control panel
- Pre-programmed control panel
- Temperature, pressure, and conductivity monitoring
- Low water and high-temperature safety protection
Built for Demanding Applications
Our industrial electric hot water boilers are trusted across:
- Commercial buildings & multi-residential facilities
- Hospitals, schools, and institutions
- Food processing and manufacturing plants
- Industrial and mining operations
- District energy and power generation
Maximize Performance with Proper Water Management
Electrode boilers rely on water conductivity for optimal performance. AEP Thermal guides to ensure proper:
- Water treatment
- Conductivity control
- System longevity and efficiency
Why Choose AEP Thermal?
- Proven immersed electrode boiler expertise
- High-voltage, industrial-grade system design
- Fully integrated controls and safety systems
- Engineered for reliability, flexibility, and long service life
Power the Future with Proven Innovation
Frequently Asked Questions
What makes AEP Thermal's immersed electrode hot water boilers more cost-effective than gas-fired alternatives for large industrial facilities?

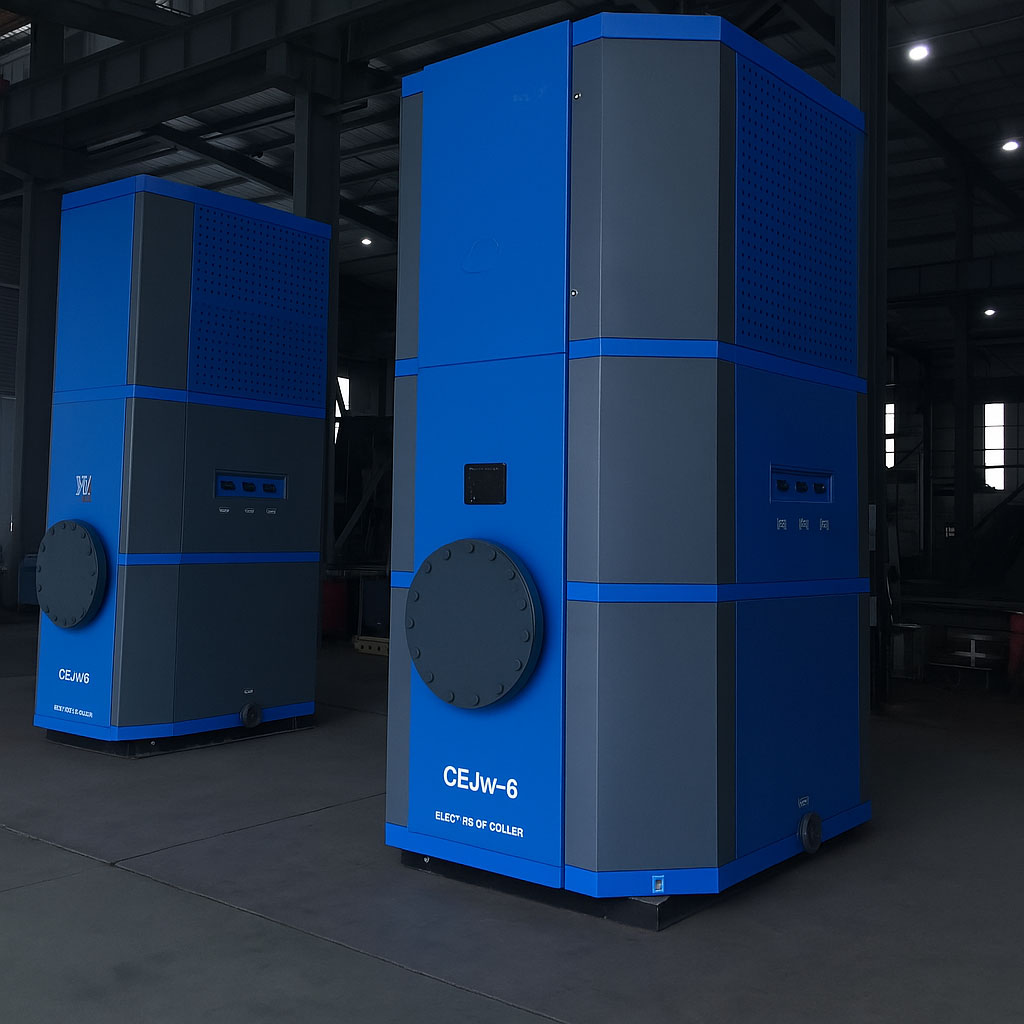

AEP Thermal’s CEJW series connects directly to medium-voltage distribution grids (4,160V–25,000V), eliminating the need for step-down transformers and fuel infrastructure — cutting both capital expenditure and installation timelines significantly. For capacities between 2–20 MW, the total cost of ownership is lower due to 99.5%+ thermal efficiency, no combustion maintenance overhead, and the ability to leverage off-peak electricity rates. For facility managers running 24/7 operations, this translates to predictable operating costs without exposure to fuel price volatility.
Can AEP Thermal's hot water boiler handle sudden load fluctuations in a manufacturing environment?
Yes. The CEJW series responds from 0–100% output in under one minute from hot standby, making it well-suited for variable-demand environments. The automatic load control adjusts output in real time, ensuring consistent process temperatures without manual intervention — critical for continuous production lines in food processing, textiles, or chemical manufacturing.
How does water conductivity affect performance and the maintenance schedule?
The CEJW boiler modulates output by adjusting electrode immersion depth relative to the water’s conductivity. AEP Thermal recommends periodic water treatment checks — typically quarterly — to maintain conductivity within specified parameters. This is significantly less maintenance-intensive than combustion boiler servicing. AEP’s engineering team provides site-specific water management guidelines during commissioning.
What certifications does the CEJW carry for facilities operating under ASME or CE compliance requirements?
The CEJW series holds ASME Section VIII (U-Stamp), CRN (Canadian Registration Number), and CE/PED certification — making it fully compliant for industrial installations across North America and the European Union. For procurement teams navigating regulatory approvals, AEP Thermal provides complete documentation support to streamline the permitting process.
