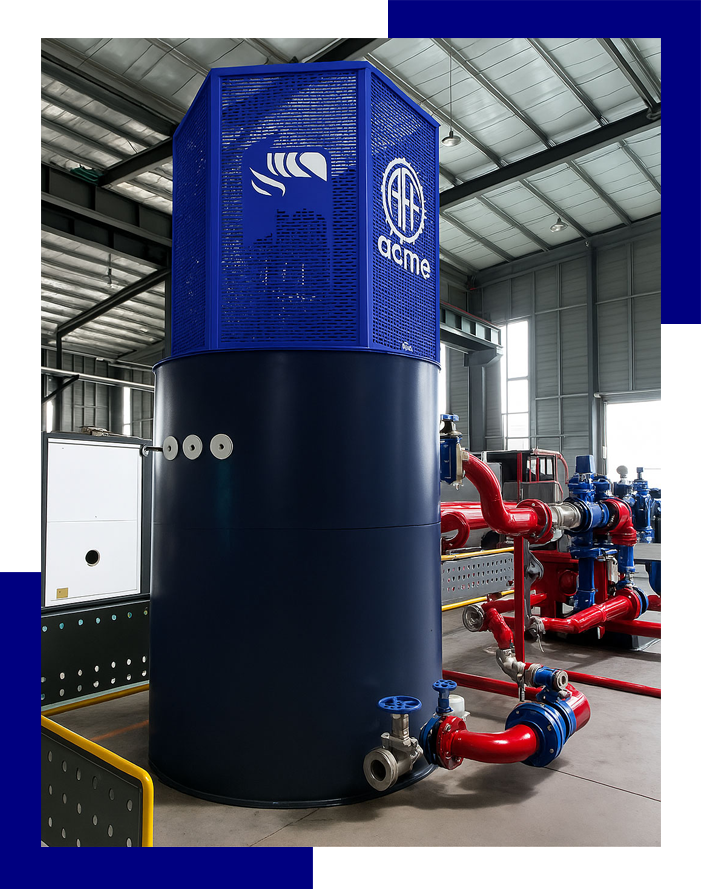

High Voltage Immersed Electrode Steam Boiler

Electrode boilers utilize the conductive and resistive properties of water to carry electric current and generate steam. An A.C. current flows from an electrode to one phase to the ground using the water as the conductor.

Contact Us

Immersed Electrode Steam Systems for Efficient, On-Demand Process Steam

Looking for a reliable, high-efficiency alternative to gas-fired steam boilers? AEP Thermal’s industrial electric steam boilers use advanced immersed electrode technology to deliver instant, scalable steam generation—without combustion, emissions, or fuel handling.

Operating from 4.16 kV to 25 kV and available in capacities up to 60 MW, CEJWS immersed electrode boilers are engineered for facilities requiring scalable, fully modulating steam generation with precise pressure control and reduced maintenance requirements.

What Is an Immersed Electrode Steam Boiler?

An immersed electrode steam boiler is a type of electric boiler that generates steam by passing an electrical current directly through water. Instead of using resistive heating elements or combustion, the water itself acts as the conductive medium—producing heat and steam rapidly and efficiently.

How It Works:

  •  Electrical current flows between submerged electrodes to neutral center points through conductive water
  • Electrical resistance in the water generates heat.
  • Steam is produced quickly and efficiently
  • Output is automatically adjusted based on demand

Key Advantages:

  • Near 100% efficiency at the point of use
  • Fast response time for changing steam loads
  • No burners, no fuel, and no emissions
  • Minimal mechanical components and maintenance
  • Full modulation from 8% to 100% capacity

This makes immersed electrode steam boilers an ideal solution for facilities seeking efficient, responsive, and future-ready steam generation.

Contact Us

Advanced Electrode Steam Boiler Design

AEP Thermal’s systems are based on an enhanced electrode boiler design that improves reliability, efficiency, and control compared to earlier technologies.

  • Continuous modulation from 08% to 100% output
  • Stable operation using a constant-pressure circulating system
  • Precision output control via modulating sleeve technology
  • High-voltage capability for large-scale steam applications
  • Optimized conductivity management to reduce blowdown

This advanced design ensures consistent steam pressure and output, even under rapidly changing load conditions.

Contact Us

Features & Standard Equipment

AEP Thermal delivers fully engineered, industrial-grade steam boiler systems with all critical components integrated.

Mechanical Features:

  • ASME-certified pressure vessel
  • Fully assembled electrode system
  • Insulated boiler shell and enclosure
  • Integrated circulation system

Plumbing Components:

  • Safety valves and blowdown system
  • Automatic air vent and drain valves
  • Isolation valves and strainers
  • Make-up water and chemical feed connections

Electrical System:

  • High-voltage electrode terminals
  • Grounded safety enclosures
  • Pump motors and starters

Control System:

  • Pre-programmed control panel
  • Pressure and temperature monitoring
  • Conductivity detection and control
  • Low water and high-temperature safety shutdowns
  • Flow and level detection systems

Contact Us

Benefits of Steam Boilers

Efficiency & Performance

  • Near 100% energy efficiency at the point of use
  • Rapid steam generation with minimal lag time
  • Precise control over pressure and output

Operational Simplicity

  • No combustion systems, burners, or flues
  • Reduced maintenance and downtime
  • Quiet and compact system design

Sustainability

  • Zero on-site emissions
  • Supports electrification and decarbonization goals
  • Ideal for facilities transitioning from fossil fuels

Contact Us

Industries We Serve

AEP Thermal’s industrial electric steam boilers are trusted across a wide range of industries:

  • Food and beverage processing
  • Pharmaceutical and chemical manufacturing
  • Textile and industrial production
  • Pulp and paper processing
  • Hospitals and sterilization systems
  • District energy and central steam plants
Contact Us

Water Quality & System Optimization

Proper water chemistry is essential for optimal electrode boiler performance. AEP Thermal provides guidance to ensure:

  • Correct conductivity levels for efficient operation
  • Proper pH and chemical balance
  • Reduced scaling and blowdown requirements
  • Long-term system reliability and efficiency

A complete water analysis helps ensure your electric steam boiler system operates at peak performance.

Contact Us

Complete, Turnkey Boiler System

Each AEP Thermal immersed electrode steam boiler is delivered as a complete, turnkey system, simplifying installation and startup.

Included in Every System:

  • Pressure vessel and electrode assembly
  • Circulation pumps and heating loop components
  • Integrated safety and blowdown systems
  • Advanced automation and control panel
  • Monitoring for pressure, temperature, and conductivity

This turnkey approach reduces installation time and ensures seamless integration into your facility.



Contact Us

Why Choose AEP Thermal?

  • Proven expertise in immersed electrode steam boiler systems
  • High-voltage, industrial-grade engineering
  • Custom solutions tailored to your process steam needs
  • Reliable performance across demanding applications
  • Dedicated technical support from design through operation

Contact Us

Power the Future with Proven Innovation

At A.E.P. Thermal Inc., we specialize in custom solutions tailored to the diverse needs of industries such as power generation, mining, food processing, and chemical production. Our commitment to continuous improvement, innovation, and long-term customer relationships ensures that we remain at the forefront of the electric boiler industry—delivering superior value, efficiency, and performance for decades to come.
