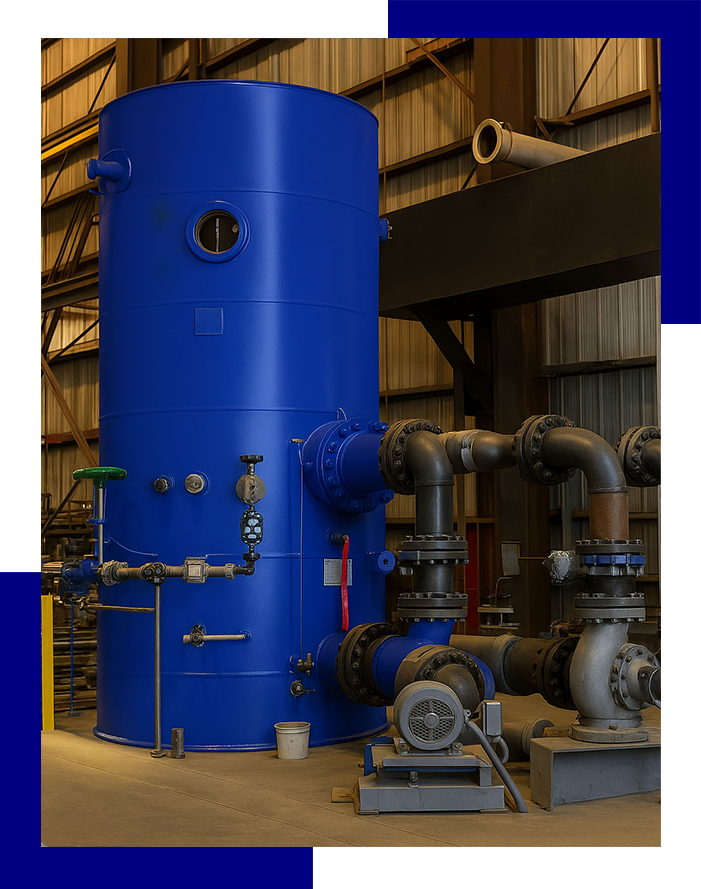

High Voltage Jet Type Steam Boiler – CEJS Series
The model CEJS High Voltage Electrode Steam Boiler is the proven leader with more hours of operating experience over a wide range of applications than any competitor. The CEJS electrodes are vertically mounted around the inside of the pressure vessel which enables the CEJS to produce maximum amounts of steam in a minimum amount of floor space.
The CEJS operates at existing distribution voltages, 4.16 to 25 KV with exceptional efficiency – up to 99.9% efficient! Models are available to produce steam in capacities to 270,000 pounds per hour. Pressure ratings range from 75 psig to 500 PSIG.
The more current (amps) that flows, the more heat (BTUs) is generated and the more steam produced. Nearly 100% of the electrical energy is converted into heat with no stack or heat transfer losses.
All CEJS boilers are designed to ASME Sec. VIII Div.1 and are certified and registered pressure vessels. Electrode boilers utilize the conductive and resistive properties of water to carry electric current and generate steam. An A.C. current flows from an electrode of one phase, through neutral, to an electrode of another phase using the water as a conductor. Since the water has electrical resistance, the current flow generates heat directly in the water itself.
Key Advantages and Features
Electrode boilers utilize the conductive and resistive properties of water to carry electric current and generate steam. An A.C. current flows from an electrode of one phase to the neutral. The second jet flows from the electrode to the counter electrode. Since the water has electrical resistance, the current flows generate heat directly in the water itself. The more current (amps) that flows, the more heat (BTU) is generated, and more steam is produced. Almost 100% of the electrical energy is converted into heat with no stack or heat transfer losses. Low water protection is absolute since the absence of water prevents current from flowing and the electrode boiler from producing steam. Unlike conventional electric boilers or fossil fuel boilers, nothing in the electrode boiler is at a higher temperature than the steam produced itself. There is no loss in conversion efficiency, however, and simply cleaning the electrodes will restore full boiler capacity. There can be no heat build-up in the electrodes, therefore, no electrode burnout, and no danger to the boiler itself.
Economical Installation
The CEJS boiler eliminates the need for fuel lines, storage, handling equipment, economizers, and emission control systems, resulting in significant capital expenditure savings.
Enhanced Safety
With no combustion process, the CEJS model removes risks associated with flames, fumes, fuel lines, or storage tanks. The design ensures no low water dangers, as current flow is dependent on water presence, and prevents issues like heat buildup or electrode burnout, even in cases of scaling.
Lower Operating Costs
The boiler’s straightforward operation and maintenance, combined with automatic controls, reduce the need for extensive operating personnel. Its high efficiency translates to lower energy consumption and operational expenses.
Minimal Maintenance
The absence of excessive temperatures and burnout ensures a long operating life. With fewer components and no fuel residues, cleaning and maintenance requirements are substantially reduced.
Environmentally Friendly
Operating without combustion, the CEJS boiler produces no emissions, aligns with sustainability goals, and reduces the environmental footprint of your operations.
Benefits
The versatility and efficiency of the CEJS High Voltage Electrode Steam Boiler make it suitable for a wide range of industries, including:
Healthcare Facilities
Providing clean and reliable steam for sterilization and heating.
Providing clean and reliable steam for sterilization and heating.
Educational Institutions
Supplying efficient heating solutions for campuses and research facilities.
Supplying efficient heating solutions for campuses and research facilities.
Manufacturing Plants
Delivering consistent steam for various production processes.
Delivering consistent steam for various production processes.
Power Generation
Serving as auxiliary boilers in power plants for peak load demands.
Serving as auxiliary boilers in power plants for peak load demands.
District Heating Systems
Offering centralized heating solutions for residential and commercial complexes.
Offering centralized heating solutions for residential and commercial complexes.
AEP Thermal’s Promise
We promise to deliver more than boiler solutions—we provide expertly engineered, custom-tailored systems that drive efficiency, reliability, and sustainability in every installation. Our commitment is to be a trusted partner, solving the most complex challenges with agility and innovation while leading the industry toward a cleaner, electric-powered future.
We ensure seamless performance, long-term value, and a greener tomorrow.
